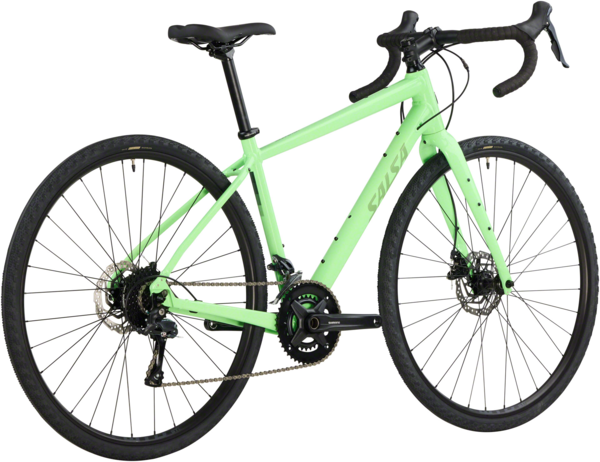

Salsa Journeyer Sora

Salsa Journeyer Sora
  • Color: Citrus Green
$976.65 - $1,149.00
$1,149.00
Color: Citrus Green
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Order now and pick up in-store for free (does not apply to large fitness equipment)

Details

Journeyer is Salsa’s workhorse road and gravel adventure machine. This versatile platform is a gateway to gravel riding. The confidence of its redesigned aluminum frame and aluminum fork attracts mixed-surface riders, while its cargo capacity appeals to bikepackers. Journeyer’s fender mounts, rack mounts, wheel size compatibility, and handlebar options suit riders seeking a do-it-all bike.

- 6061-T6 alloy frame
- Salsa Fantail aluminum fork with fender mounts, Three-Pack mounts, and mid-blade rack mounts
- Flat mount brakes
- Internal routing for brakes, shifters, and dropper post
- Top tube and down tube accessory mounts on frame hold ride essentials
- Compatible with 700c and 650b wheels and tires
- Frame fits tires up to 700c x 50 mm or 650b x 55 mm (27.5 x 2.1")
- Fantail fork fits tires up to 700c x 56mm or 650b x 59mm
- 9 x 100mm quick-release front, 10 x 135mm quick release rear

Geometry Chart:
Frame Size49 cm51 cm53 cm55 cm57 cm60 cm
Top Tube Effective 493.0mm 510.0mm 530.0mm 550.0mm 570.0mm 600.0mm
Head Tube Angle 68.5° 69.5° 69.5° 69.5° 69.5° 69.5°
Effective Seat Tube Angle 76.0° 75.0° 74.0° 73.0° 73.0° 73.0°
BB Drop 70.0mm 70.0mm 70.0mm 70.0mm 70.0mm 70.0mm
Head Tube Length 90.0mm 105.0mm 130.0mm 150.0mm 180.0mm 210.0mm
Fork Length 401.9mm 401.9mm 401.9mm 401.9mm 401.9mm 401.9mm
Fork Offset 50.0mm 50.0mm 50.0mm 50.0mm 50.0mm 50.0mm
Rear Center 440.0mm 440.0mm 440.0mm 440.0mm 440.0mm 440.0mm
Bottom Bracket Height (non-Sus only) 283.0mm 283.0mm 283.0mm 283.0mm 283.0mm 283.0mm
Mechanical Trail 79.4mm 73.6mm 73.6mm 73.6mm 73.6mm 73.6mm
Wheel Base 1027.3mm 1027.6mm 1039.7mm 1050.5mm 1072.4mm 1104.3mm
Stack 510.3mm 528.2mm 551.6mm 570.4mm 598.5mm 626.6mm
Reach 365.8mm 368.5mm 371.8mm 375.6mm 387.0mm 408.4mm
Front Center 597.1mm 597.3mm 609.3mm 620.0mm 641.8mm 673.6mm
Chainstay Length 445.5mm 445.5mm 445.5mm 445.5mm 445.5mm 445.5mm
Seat Tube Length 340.0mm 380.0mm 410.0mm 450.0mm 490.0mm 520.0mm
Max Seatpost Insertion Length 200.0mm 200.0mm 200.0mm 200.0mm 200.0mm 200.0mm
Standover 617.0mm 652.0mm 688.0mm 724.0mm 760.0mm 807.0mm
Sizes:
SizeRider Height
49 cm 142-150cm
51 cm 150-157cm
53 cm 157-168cm
55 cm 165-175cm
57 cm 173-183cm
60 cm 183-193cm

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

Frame Journeyer Drop-Bar Quick-Release
Fork Fantail QR
Rims WTB ST i23, TCS 2.0, 32h, 700c
Hubs Shimano TX5050, QR, OLD: 100mm / Shimano TX5050, QR, OLD: 135mm
Spokes 14g, black
Tires Teravail Washburn 700c x 38mm, wire-bead
Bottom Bracket Shimano RS501 -OR- FSA Square Taper, 68mm, BSA, 118mm spindle
Crankset Shimano MT210, 46–30t -OR- FSA Tempo, 46–36t
Shifters Shimano Sora R3000
Front Derailleur Shimano Sora R3000
Rear Derailleur Shimano Sora R3000
Cassette/Freewheel Shimano Deore M7100, 10–51t, 12-speed
Chain KMC X9
Brakes Tektro C550
Rotors Shimano RT10 (Center Lock, 160mm front and rear)
Brake Levers Shimano Sora R3000
Handlebars Salsa Cowbell 3
Tape/Grips Black
Stem Salsa Guide
Headset FSA NO.42/ACB
Seatpost ProMax
Saddle WTB Volt Medium
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Citrus Green / 49cm / 700c 657993447888 BK01302
Citrus Green / 51cm / 700c 657993447901 BK01303
Citrus Green / 53cm / 700c 657993447925 BK01304
Citrus Green / 55cm / 700c 657993447949 BK01305 210000056700
Citrus Green / 57cm / 700c 657993447963 BK01306 210000056701
